High Definition LED Grille Screen No Noise 500mmX1000mmX75mm Wide View Angle

Product Categories
Shenzhen Vios Electronic Technology Co., Ltd
Contact Now

High Definition LED Grille Screen No Noise 500mmX1000mmX75mm Wide View Angle

Brand Name : Vios

Model Number : P10.42

Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA

Place of Origin : China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 5000 Square/one month

Delivery Time : 7-15days

Packaging Details : Carton box / Flight case / Wooden box

Driving method : 1/4 scan

Color temperature : 7000-8500K

Brightness : >4800cd/sq.m

Working humidity : 10% ~ 90%

Maximum power consumption : <800W/sq.m

Size of cabinet : 500mmx 1000mm x 75mm

Pixel pitch : 10.416mm

Resolution of cabinet : 48x96

Contact Now

Indoor LED Screen Grille Curtain display P10 / P12.5 / P16 / P20 with performance design

Product description:

  • High definition, Good uniformity,long life span;
  • Module design, easy to change modules, and convenient to install and dismantle;
  • Independent driving circuit, equiped slim power supply, no fans no noise,good evironment protection;
  • Widely used for commercial led display, stage led display,rental led display;
  • SMD led encapsulation confirm wide view angle,and good uniformity,eyes friendly;
  • Super thin aluminum cabinet and mesh design minimize cabinet weight, only 10kgs per cabinet;
  • With rental aluminum cabinet, light weight, easy and quick to assemble and maintenance;
  • SMD led encapsulation confirm wide view angle and light weight；
  • Easy bend for defferent shapes,like S, Circle, Curve etc, also can Foldable from Horizontal and Vertical;
  • High brightness;

Parameter:

P10.416 Outdoor full Color LED Curtain Specification
Item P10.416
Pixel pitch 10.416mm
Pixel Configuration 1R1G1B
LED component SMD3535(encapsulated by Nation star )
Size of module 250mm x 250mm
Resolution of module 24x24
Size of cabinet 500mmx 1000mm x 75mm
Resolution of cabinet 48x96
Material of Cabinet Aluminum profile
Weight of Cabinet <10.5KGS
Brightness >4800cd/sq.m
Density 9216dots/sq.m
Best viewing angle 120 /120
Best viewing distance 10-150M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 7000-8500K
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1500Hz
IP grade IP65 for front, IP34 for rear
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

FQA:

  • Are you manufacturer or trading company?
  • We are manufacturer with professional marketing and service team;
  • What is the payment method?
  • We support a variety of payment methods, the most common is the TT;
  • How about your production ability?
  • We have 10 production lines with all series of automatic production machines.
  • Monthly production ability: 200,000pcs of led modules and 4,000sqm of assembled led displays;
  • What's the pixel pitch for Outdoor LED Display Screen? Outdoor(p3.91mm/p4.81/p5mm/P6mm/p6.25/p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen;
  • May I know the Minimum order for your products?
  • For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen;
  • Besides this product, may I have other options?
  • Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor;

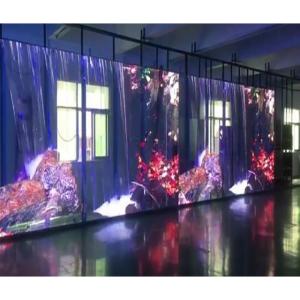

Project case:
