CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle

Shenzhen Vios Electronic Technology Co., Ltd
Contact Now

CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle

  • 1
  • 2
  • 3

Brand Name : Vios

Model Number : 16

Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA

Place of Origin : China

MOQ : 1 Piece / 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 5000pcs/one month

Delivery Time : 7-15days

Packaging Details : Carton box / Flight case / Wooden box

Driving Mode : 1/4 scan

View Angle(H/V) : 120/120°

Cabinet Weight : 15 kg

IP Rating : IP43

Pixel Density : 3906 Dots/sq.m

Pixel Pitch : 16 mm

Operation Temperature : -20~+40 ºC

Cabinet Material : Aluminum

Contact Now



P16 indoor LED Mesh Curtain display full color IP43 grade 1/4 scan screen panel

Product description:

  • Made with Aluminum material, light and thin, less than 70mm thickness;
  • Slim Aluminum Cabinet,light weight, easy to move and portable, and quick to assemble and dismantle by hands;
  • Independent driving circuit, equiped slim power supply, no fans no noise,good evironment protection;
  • Fast locks and aviation plugs structure for install and dismantle conveniently and easily;
  • With customized panel size,easy for different sizes and combined randomly,better for rental use with different screen sizes;
  • Multifunctional indoor & outdoor mesh LED ;
  • High quality lighting parts with special PCB Board design, confirm good display and long life span;
  • Flexible modules can be many different abnormal shapes with magnets and custom-made frames;
  • Widely used for commercial led display, stage led display, rental led display,advertising led display, message board etc;
  • high drafty: no air conditioning fan, cost savings;
CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View AngleCP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle

Parameter:

P16 Indoor Full Color LED Curtain Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 16
Pixel Density Dots/sq.m 3906
Pixel Configuration   SMD3528
Cabinet Resolution dots 64×48
Refresh Rate Hz ≥1200
View Angle(H/V) ° 120/120
Brightness nits ≥1000
Gray Scale Bit 687Million
IP Rating   43
Power Consumption(Max/Avg) W/sq.m 400/150
Input Voltage(AC) V 110~220
Modular Characteristics
Cabinet Size(W×H×D) mm 1024×768×36
Cabinet Material   Aluminum
Cabinet Weight Kg 15
Module Size(W×H) mm 256×256
Environment
Operation Temperature ºC -20~+40
Operating Humidity   10%~90%
Driving Mode   1/4 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why choose us:

  • We have competitive price;
  • Excellent R&D team,lower the cost and assure you quality goods;
  • attractive price!
  • If you have any urgent questions, pls contact me without hesitation;
  • We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 9000 square meters of production base, 200 employees, enough for any orders;
  • Quick delivery: 10-25 working days;
  • CE,RoHS,FCC certification;

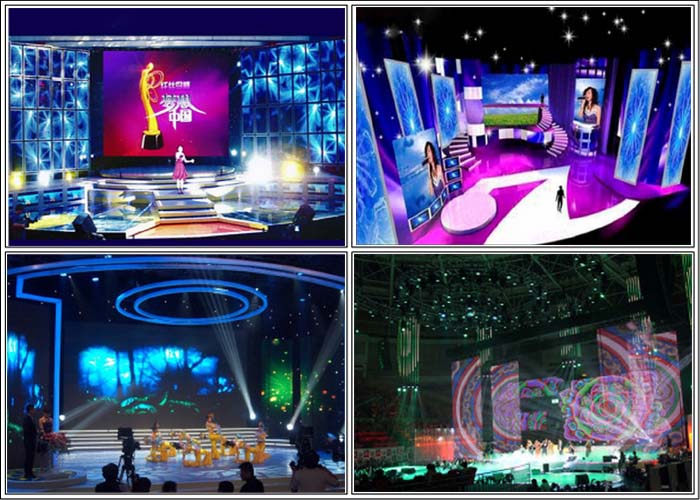

Project case:

CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle

CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
