Full Color Outdoor SMD Stadium LED Screens P5 High Brightness More Than 7000 Nits / Sqm

Product Categories
Shenzhen Vios Electronic Technology Co., Ltd
Contact Now

Full Color Outdoor SMD Stadium LED Screens P5 High Brightness More Than 7000 Nits / Sqm

  • 1
  • 2

Brand Name : Viso

Model Number : PH5

Certification : UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiation

Payment Terms : L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA

Supply Ability : 6,000 square meters per month

Delivery Time : 4-6 work days

Packaging Details : Wooden box or Flight case

Pixels : 5mm

Usage : Outdoor

Pixel density : 40000dots / sqm

Cabinet size : 640mm*640mm/960mm*960mm

Brightness : 7500cd / sqm

LED type : RGB 3in1 SMD2727

Driving mode : 1/8 Scaning

Life span : 100,000 hours

Waterproof : IP65

Contact Now


Product name: High Brightness More Than 7000 Nits / Sqm P5 Full Color Outdoor SMD LED Display

Main Features

1. easily upgrade size of sign

2. user friendly computer system


3. approximate 3D image quality

4. Fast and easy to assemble and dismantle

5. Wide viewing angle ,excellent white color balance

6. High grayscale (15 bits) with perfect visual performance


7. High reliability and long lifespan (MTBF ≥ 10000 hours)

Parameter:

Unit Module Item: RGX outdoor led display Parameter
Model: P5mm Full color outdoor led Module
Pixel Pitch: 5 mm
Pixel configuration: 1R1G1B SMD2727
Module Size: 320mm * 160mm
Module Resolution: 64dots(W) * 32dots(H)
Module Thickness: 18mm
Module Weight: 0.55 KG
LED type: SMD2727 3in1
Max Power: 16.5W
Pixel Density: 40000 dots / SQM
Driving Method: Constant Current Driving
Scan Method: 1/32 Scan
Interface Way: HUB 75 B
Brightness: ≥ 7500CD /SQM
Unit Cabinet Cabinet Size: 640mm * 640mm (Support Customize)
Cabinet Composing: 8 pcs
Power Supply Mode: 5V/40A 5V/60A
Cabinet Resolution: 128dots * 128dots
Best Viewing Distance: 5-300M (according to the big screen size)
Optimal Viewing Angle:

Horizontal angle: 160 degree;

Vertical angle: 90 degree
Environment Temperature:

Storage: -40 degree `~ +85 degree

Work: -20 degree ~ +60 degree
Relative Humidity: 10% ~ 95%
Power Operating Voltage: AC:100V~120V AC:220~240V
Average Power: 180-250W/ SQM
Max Power Consumption: ≤ 600W
Current: ≤ 20mA (single LED)
Control System Computer: Pentium4 or above P4 or above
Operate System: Win98/2000/NT/XP
Control Mode: Synchronization with PC

Main Technical

Parameter

 Driving Device: IC Constant Current Driving (RGX)
Refresh Rate: ≥ 1200Hz
Gray/Color: RGB each 256 grade, can display 16.7color
MTPF: ≥ 9000hours
Power Switch: RGX Brand Automatic Switch
Display Mode: 800*6001024*7681280*960

Application


Outdoor P5 full color module is made up of red, green and blue led lamp, which is encapsulated into a pixel and arrange matrix, then welded to PCB. This module contains driving chip and input buffer chip, connect it to LED display control system, can display video, image and text messages. Driving red, green and blue LED through PMW signal, and form 16777216 color; This module can be to installed to die cast aluminium cabinet or aluminium base board which can organize different size LED display screen.

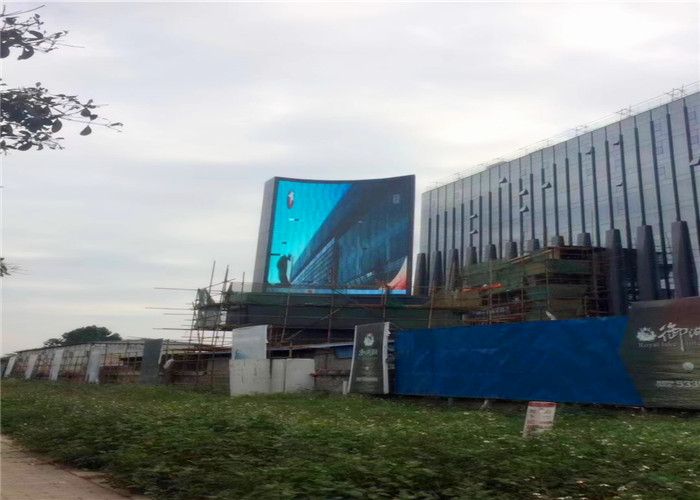

Full Color Outdoor SMD Stadium LED Screens P5 High Brightness More Than 7000 Nits / Sqm

Full Color Outdoor SMD Stadium LED Screens P5 High Brightness More Than 7000 Nits / Sqm
